199884 Model code: XH-303-15-A10-A00-2B

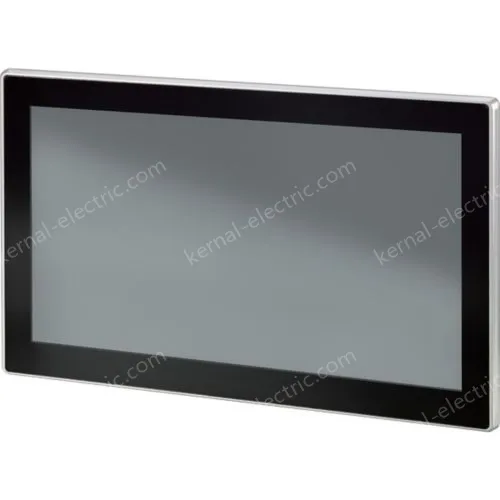

Eaton XH300 web panel, 15" display, Ethernet, USB, Linux">

199884 Model code: XH-303-15-A10-A00-2B

Features

USB Host
Ethernet interface
Fanless CPU and system cooling, natural convection-based passive cooling
Portrait format

10.10 Temperature rise

The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.

10.11 Short-circuit rating

Is the panel builder's responsibility. The specifications for the switchgear must be observed.

10.12 Electromagnetic compatibility

Is the panel builder's responsibility. The specifications for the switchgear must be observed.

10.13 Mechanical function

The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

10.2.2 Corrosion resistance

Please enquire

10.2.3.1 Verification of thermal stability of enclosures

Please enquire

10.2.3.2 Verification of resistance of insulating materials to normal heat

Please enquire

10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects

Please enquire

10.2.4 Resistance to ultra-violet (UV) radiation

Please enquire

10.2.5 Lifting

Does not apply, since the entire switchgear needs to be evaluated.

10.2.6 Mechanical impact

Does not apply, since the entire switchgear needs to be evaluated.

10.2.7 Inscriptions

Please enquire

10.3 Degree of protection of assemblies

Please enquire

10.4 Clearances and creepage distances

Please enquire

10.5 Protection against electric shock

Does not apply, since the entire switchgear needs to be evaluated.

10.6 Incorporation of switching devices and components

Does not apply, since the entire switchgear needs to be evaluated.

10.7 Internal electrical circuits and connections

Is the panel builder's responsibility.

10.8 Connections for external conductors

Is the panel builder's responsibility.

10.9.2 Power-frequency electric strength

Is the panel builder's responsibility.

10.9.3 Impulse withstand voltage

Is the panel builder's responsibility.

10.9.4 Testing of enclosures made of insulating material

Is the panel builder's responsibility.

Fitted with:

Color display
1 x USB host (built-in interface)

Fuse type

Built-in fuse (not accessible)

Enclosure material

Insulated material

Supply voltage at AC, 50 Hz - max

0 V

Supply voltage at AC, 50 Hz - min

0 V

Supply voltage at AC, 60 Hz - max

0 V

Supply voltage at AC, 60 Hz - min

0 V

Supply voltage at DC - max

30 V

Supply voltage at DC - min

19.2 V

Width of the front

401.7 mm

Product category

XH-300 HMI Webpanel

Air pressure

795 - 1080 hPa (operation)

Display size

344.23 x 193.54 mm

Environmental conditions

Condensation: prevent with appropriate measures

Memory capacity

2,000,000 kByte

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - max

0

★ ★ ★ ★ ★
